Mugin-2 Pro 2930mm H-Tail Full Carbon Fiber UAV Platform

Mugin-2 Pro 2930mm H-Tail Full Carbon Fiber UAV Platform

NMM27V4W







It’s just a shell but with infinite possibilities!!!

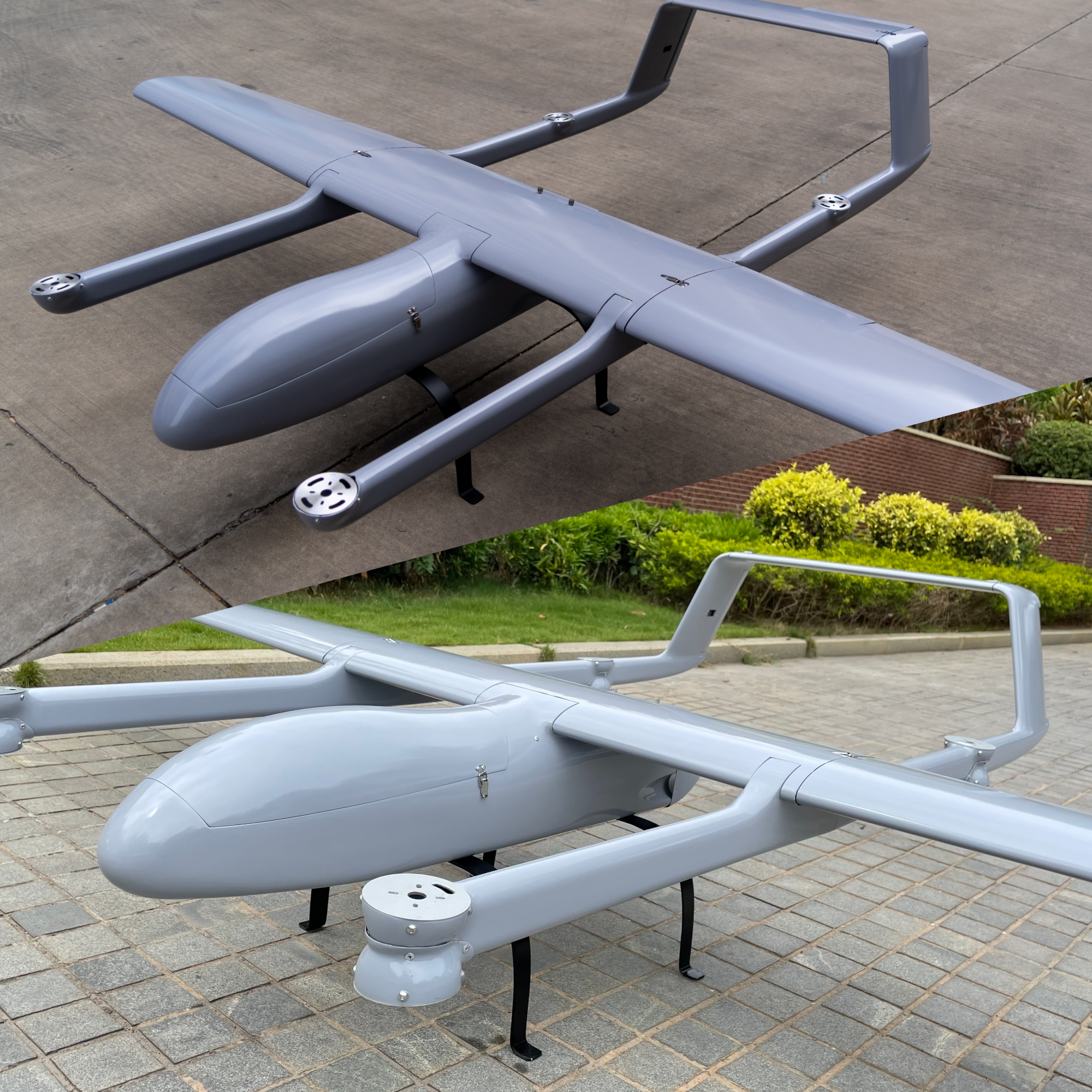

The Mugin-2 Pro 2930mm VTOL platform is a long endurance unmanned VTOL airframe designed for professional use.

It is the aircraft with the vertical take-off and landing (VTOL) function that can hover, take off, and land vertically. The platform caters to larger UAS projects such as universities or commercial projects. This aircraft is capable of carrying a wide variety of payload configurations and offers extended flight times.

The Mugin 2930mm is an exceptionally large aircraft designed for professional use and can be equipped with a full system of advanced control electronics to run in sync with the most advanced ground stations. This plane can get most anywhere, and perform most any job-related task you may require.



SPECIFICATIONS
Dimensions



  • Wingspan: 2930mm
  • Length: 1900mm
  • Wing Area: 90dm2
  • Payload Bay: 560mm x 210mm x 185mm



Weight and Payload

  • Empty Weight: 6.2kg
  • Empty Weight with ARF Package: 16.5kg
  • Maximum Take-off Weight: 23kg
  • Payload Capacity: 6kg



Packaging Information

  • Shipping Dimensions of Package: 130mm x 51mm x 40mm
  • Package Weight: Volumetric Weight of 55kg

Flight Characteristics without Payload

  • Cruise Speed: 55mph / 88kph
  • Maximum Speed: 75mph/120kph
  • Stall Speed: 28-31mph / 45-50kph
  • Maximum Flight Time: ¡Ö1.5hr
  • Range: Restricted to Flight Time



Flight Characteristics at Maximum Payload

  • Cruise Speed: 50mph / 80kph
  • Maximum Speed: 112kph / 70mph
  • Stall Speed: 28-31mph / 45-50kph
  • Maximum Flight Time: ¡Ö1.5hr
  • Range: Restricted to Flight Time

Note: Above data is for reference only.
