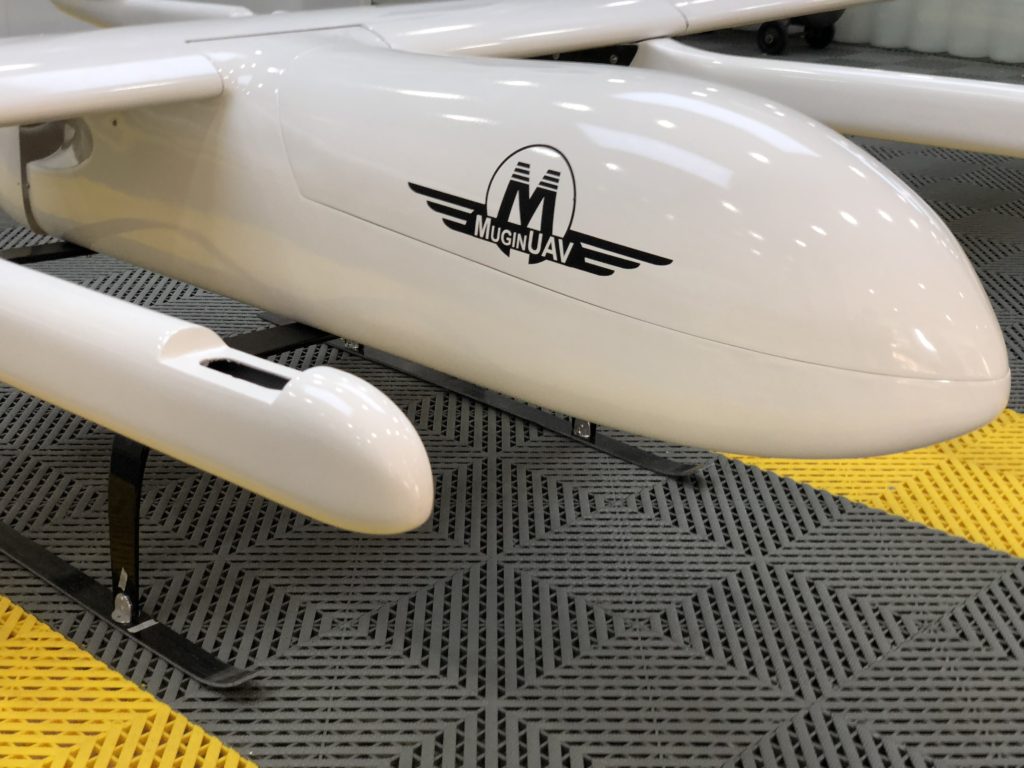

Mugin 4720mm H-Tail Full Carbon Fiber VTOL UAV Platform Frame KitNM47FV4
The Mugin 4720mm VTOL platform is a long endurance unmanned VTOL airframe designed for professional use. Using this airframe with your team of experienced engineers will allow your team to have the foundation they need for the most demanding of requirements.

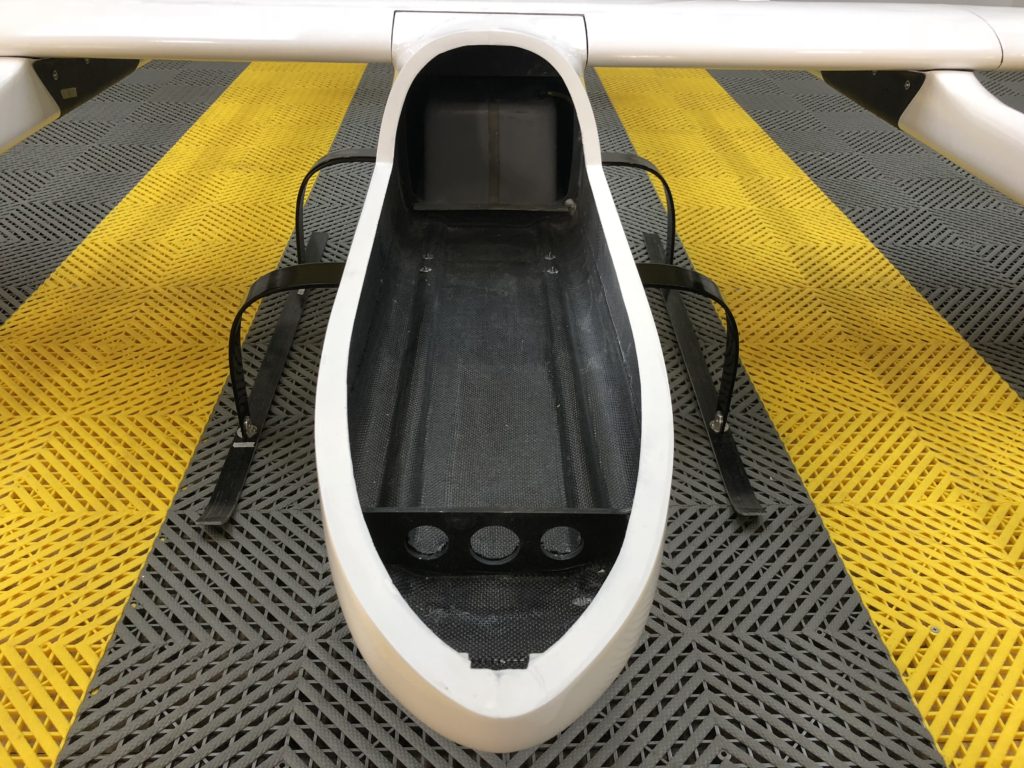

Mugin 4720mm VTOL has a payload bay is designed to accommodate a wide array of different payloads and possess the ability to lift almost anything you may require.
Mugin 4720mm VTOL¡¯s vertical take off and landing gives your crew the added advantage of not needing bulky launchers or lengthy runways. There is no need for those tricky parachute landings that are subject to mild forces of wind. Having the capability of VTOL allows the crew to do take off¡¯s and landings with surgical precision.
- Wing Area: 166 d㎡
- Wingspan: 4720 mm
- Length: 2450 mm
- Payload Bay: 500mm x 250mm x 270mm
- Empty Weight: 13.7kg
- Empty Weight with ARF Package: 30.5kg
- Maximum Takeoff Weight: 38kg
- Flight time: 3 hours
- Payload: 6-8 kg
- Lift Prop: 30 Inch
- Thrust Prop: 23 Inch
- Packaging Size: 190cm x 51cm x 50cm
- Flight Characteristics
- Cruise Speed: 75mph/120kph
- Maxium Speed: 100mph/160kph
- Stall Speed: 25mph/40kph
- Range: Restricted to Flight Time
Due to the size of the Mugin line of planes some damage may occur during shipping. Although the damage is usually minor and can be repaired easily, FPV Model cannot be held liable for these damages. This note is to inform you (the buyer) of the risk for damages during transport due to the planes being such a large size.
As the shipping cost may vary significantly depending on your location, the shipping option for Mugin planes is unavailable. Please contact us at email@example.com to place your order.
Note: We also provide free design services for the internal structure of fuselage and only the production will be charged according to the structure change.
